This 15L resin trap is for resin infusion or degassing epoxy or silicone

3.5L Resin trap

$554.85 AUD inc GST

3.5L capacity.
4x 8-12mm suction ports in lid.
3x 3/8 BSPT hoses in manifold block.
155mm ID x 185mm high.

Out of stock

Not sure what you need? Answer a few questions and we’ll put the kit together for you. Build your kit

SKU: 3.5L-resin-trap Categories: New Products, Vacuum Bagging Equipment

Description
Additional information

Description

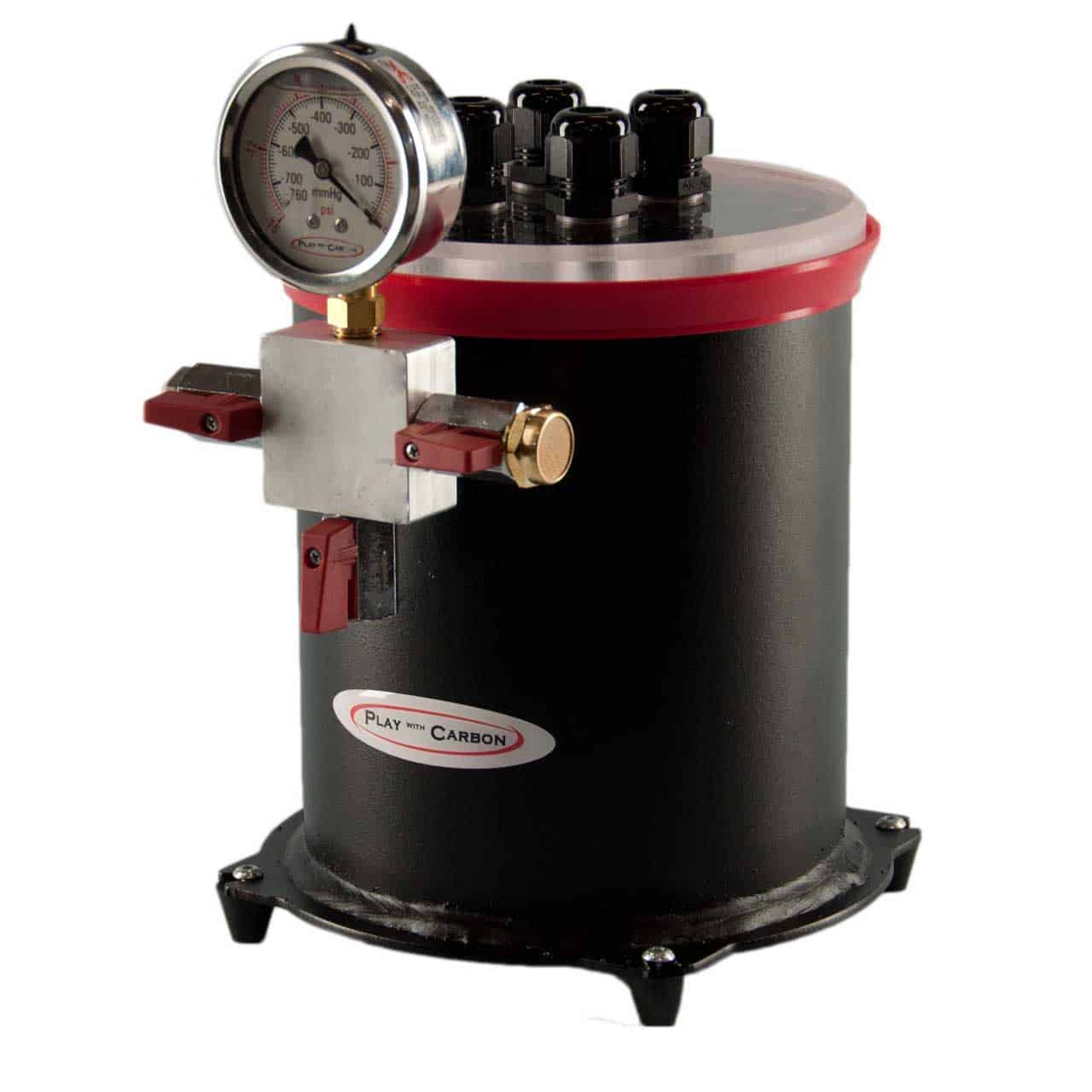

High quality Australian made vacuum catch pot.

Includes:

Clear 12mm thick, acrylic lid, so you can see inside while in use. (Handy when being used for degassing)
High quality, stainless steel, 60mm oil filled vacuum gauge.
Suitable to bolt onto our Vacuum station.
Durable powder coat finished steel pot.
Resin intake tube positioned central in the lid to line up with a cup placed inside.
Vacuum manifold block placed on the side of the pot giving 3x 3/8 BSPT ports, to give more area to view through the lid, and for easier lid removal.
Replaceable silicon seal
ALL CATCHPOTS GIVEN A 24 HOUR VACUUM TEST!! GUARANTEED TO HOLD FULL VACUUM FOR 24 HOURS!!

Use a vacuum catch pot in between your job and the vacuum pump to prevent any resin entering the pump.

Can also be used as a ‘degassing chamber’ meaning you can extract air bubbles out of your mixed epoxy or rtv silicon by blocking the resin ports, placing the cup inside and turning on your vacuum pump. (plugs supplied).

All our resin traps are proudly manufactured locally here in Lismore NSW and fully assembled in house. They can be used as a stand alone unit or adapted onto our vacuum station base giving further advantages.
